| Specifications |
Unit |

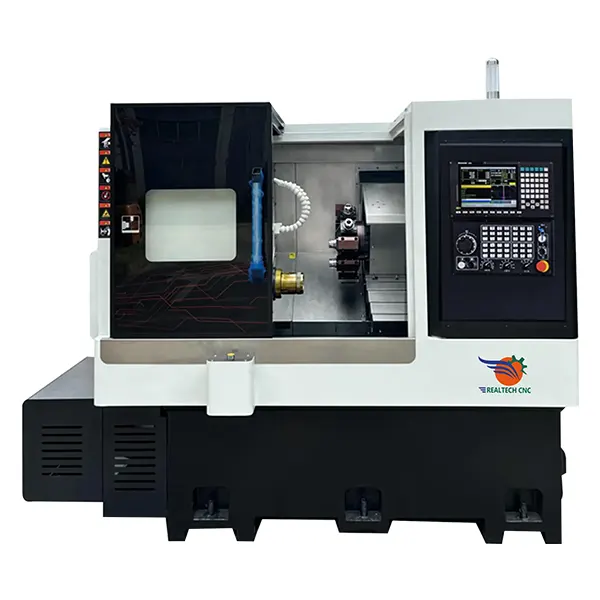

RT-200C |
| Max. Maximum Rotation Dia. of Bed |
mm |
540 |
| Max. Maximum Rotation Dia. of Pallet |
mm |
270 |
| Max. Workpiece Dia |
mm |
270 |
| Dia. of the Through Hole of the Drawn Tube |
mm |
52 |
| Collect Apecifications |
– |
A2- 6-52 |
| Cylinder Specifications |
– |
TK-852 |
| Spindle Disc Brake Torque |
Nm |
78 |
| Spindle Head Type |
– |
A2-6 |
| Maximum Spindle Speed |
rpm |
5000 |
| A-Axis Maximum Speed |
rpm |
5000 |
| X Axis Travel Dia. |
mm |
350 |
| Z Axis Travel Dia. |
mm |
320 |
| X/Z Axis Fastest Moving |
mm/min |
24000/24000 |
| X/Z/A Axis Motor Max. Torque |
Nm |
11.5/11.5/11.5 |
| X/Z Axis Guide Rail |
mm |
30/35 |
| X/Z Axis Ball Screw |
mm |
32×10 / 32×10 |
| X/Z Axis Repeat Positioning Accuracy |
mm |
± 0.002 |
| X/Z Axis Minimum Setting Unit |
mm |
0.001 |
| Tool Holder Specifications |
mm |
20×20+𝞍25 |
| Power Head Specifications |
mm |
ER25 |
| Turret Model |
– |
BMT40-12T |
| Disc Electric Spindle Power |
kw |
11 |
| Machine Size ( L X W X H) |
mm |
2150x1530x1700 |
| Machine Gross Weight |
kg |
2800 |
