| Specifications |
Unit |

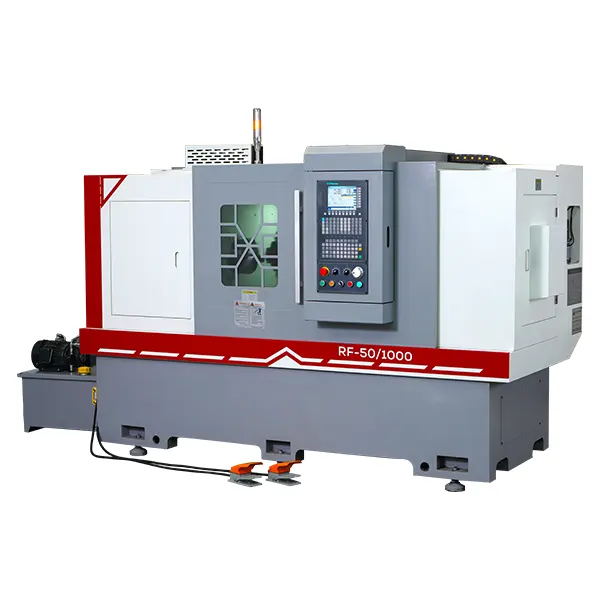

RF-50/1000 |
| Swing Over Bed |
mm |
520 |
| Maximum Cutting Dia. |
mm |
400 |
| Maximum Cutting Length |
mm |
930 |
| Between Center Turning Dia. |
mm |
230 |
| Chuck Size |
mm |
200 |
| X Axis Travel |
mm |
235 |
| Z Axis Travel |
mm |
950 |
| Bar Capacity |
mm |
50 |
| Spindle Nose |
– |
A2-6 |
| Spindle Speed |
rpm |
2500 |
| Spindle Motor Power (Servo) |
kw |
11 |
| Rapid Feed X/Z |
m/min |
18/22 |
| Ball Screw Size X |
mm |
32/8 |
| Ball Screw Size Z |
mm |
40/10 |
| Linear Roller Guideways X/Z |
mm |
30/35 |
| Axis Torque X/Z |
N.m |
7.7/10 |
| Turret Type |
Type |
BTP-80 |
| Number Of Stations |
Nos. |
8 |
| Tool Size |
mm |
25/25 |
| Max. Boring Block |
mm |
32/40 |
| Quill Taper |
Type |
MT-5 |
| Quill Dia. |
mm |
80 |
| Quill Dia. Stroke |
mm |
100 |
| Position Accuracy |
mm |
± 0.005 |
| Repeatability |
mm |
0.003 |
| Total Machine Power |
hp |
22 |
| Overall Dimension (L x W x H) |
mm |
3500 X 1800 X 2150 |
| Machine Weight (Approx) |
kg |
4300 |
