| Specifications |
Unit |

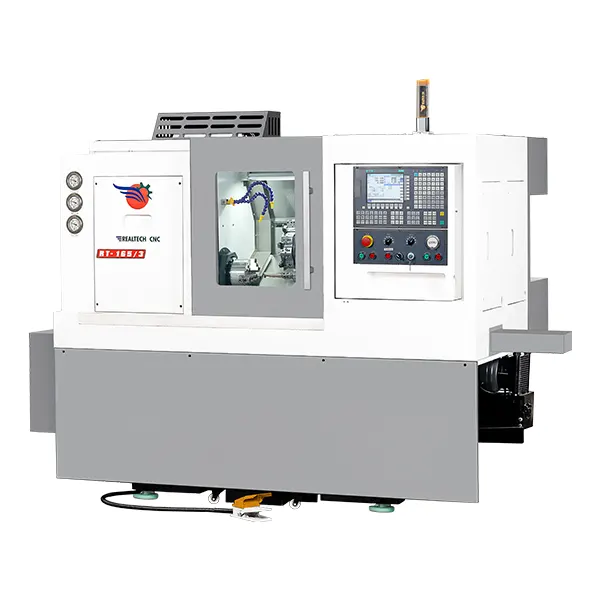

RT-165/3 |
| Swing Over Bed |
mm |
330 |
| Maximum Cutting Dia. |
mm |
230 |
| Maximum Cutting Length |
mm |
400 |
| Chuck Size |
mm |
165 |
| X Axis Travel |
mm |
240 |
| Z Axis Travel |
mm |
410 |
| Bar Capacity |
mm |
40 |
| Spindle Nose |
mm |
A2-5 |
| Spindle Speed |
rpm |
3000 |
| Servo Spindle Motor Power |
kw |
7.5 |
| Rapid Feed X/Z |
m/mm |
20/20 |
| Ball Screw Size X |
mm |
32/10 |
| Ball Screw Size Z |
mm |
32/10 |
| Linear Roller Guideways X/Z |
mm |
30/30 |
| Axis Torque X/Z |
N.m |
10/10 |
| Turret Indexing |
Type |
Servo Hydraulic (Taiwan) |
| Number Of Stations |
Nos. |
8 |
| Tool Size |
Type |
20 X 20 |
| Max. Boring Block |
mm |
32 |
| Quill Taper |
Type |
MT-4 |
| Tailstock Stroke (Hydraulic) |
mm |
240 |
| Position Accuracy |
mm |
± 0.005 |
| Repeatability |
mm |
0.003 |
| Total Machine Power |
hp |
20 |
| Overall Dimension (L x W x H) |
mm |
2200 X 1800 X 1900 |
| Machine Weight (Approx) |
kg |
2880 |
